BIT Digital Logic

Design a BCD-to Seven-segment decoder to display decimal numbers 1, 2 and 4.

What are the drawbacks of clocked RS flip flop? Explain the operation of a JK flip flop along with its characteristic table, characteristic equation circuit diagram and timing diagram.

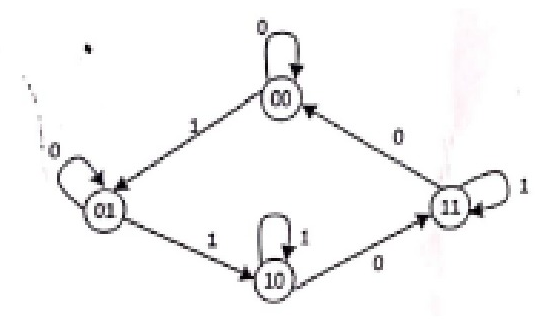

Design a sequential circuit using JK flip-flop with the help of given state diagram.

Convert \((110.101)_{8}\) into binary and decimal number system.

Subtract \((739.57)_{10} - (78.35)_{2}\) using both 10's and 9's complement.

What is magnitude comparator? Design 2-bit magnitude comparator.

Define Half-subtractor with truth table and logic diagram.

What is decoder? Implement \(8 \times 1\) MUX using \(2 \times 1\) MUX.

Design and explain the operational characteristics of D flip flop.

Design Mod-5 synchronous counter using T- flip flop.

Draw a Serial-In Serial-Out Shift register and explain it.

Write short notes on: (Any two)

a. BCD code

b. Status Register

c. Ring Counuter
